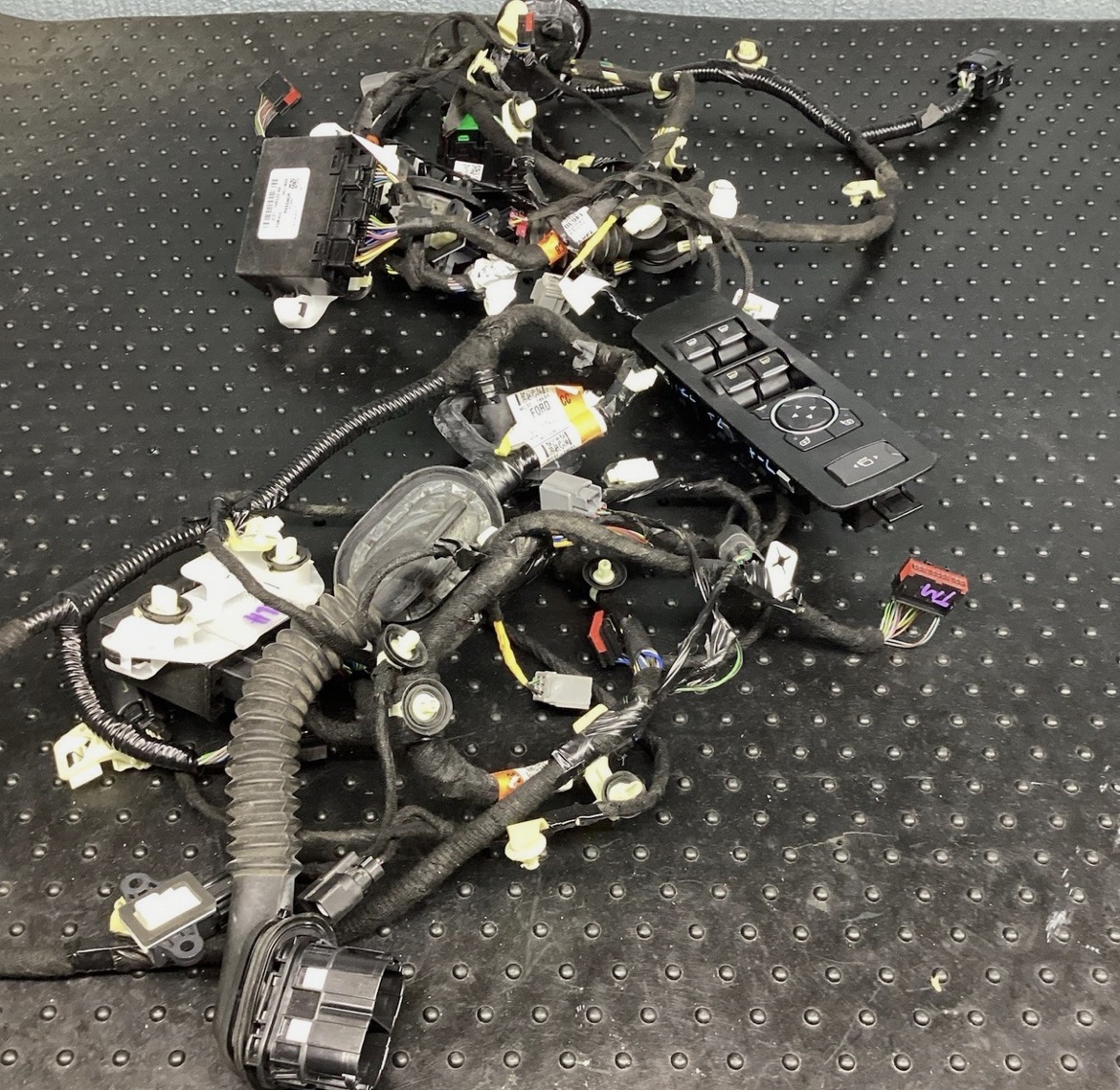

2020-2022 Ford F-250 & F-350 Super Duty Front Door Wiring Harness | RH & LH Replacement Guide

If you own a 2020–2022 Ford F-250 or F-350 Super Duty, you rely on the complex network of wires inside your doors every single day. From adjusting your power mirrors to rolling down the windows and locking the truck, the front door wiring harness is the central nervous system connecting your controls to the vehicle’s battery and body modules.

Over time, the constant flexing of wires between the door and the A-pillar can lead to broken conductors, frayed insulation, or corroded connectors. Whether you are diagnosing a “ghost” electrical issue or rebuilding a wrecked truck, this guide covers everything you need to know about the Right Hand (RH / Passenger) and Left Hand (LH / Driver) front door harnesses for the 2020-2022 model years.

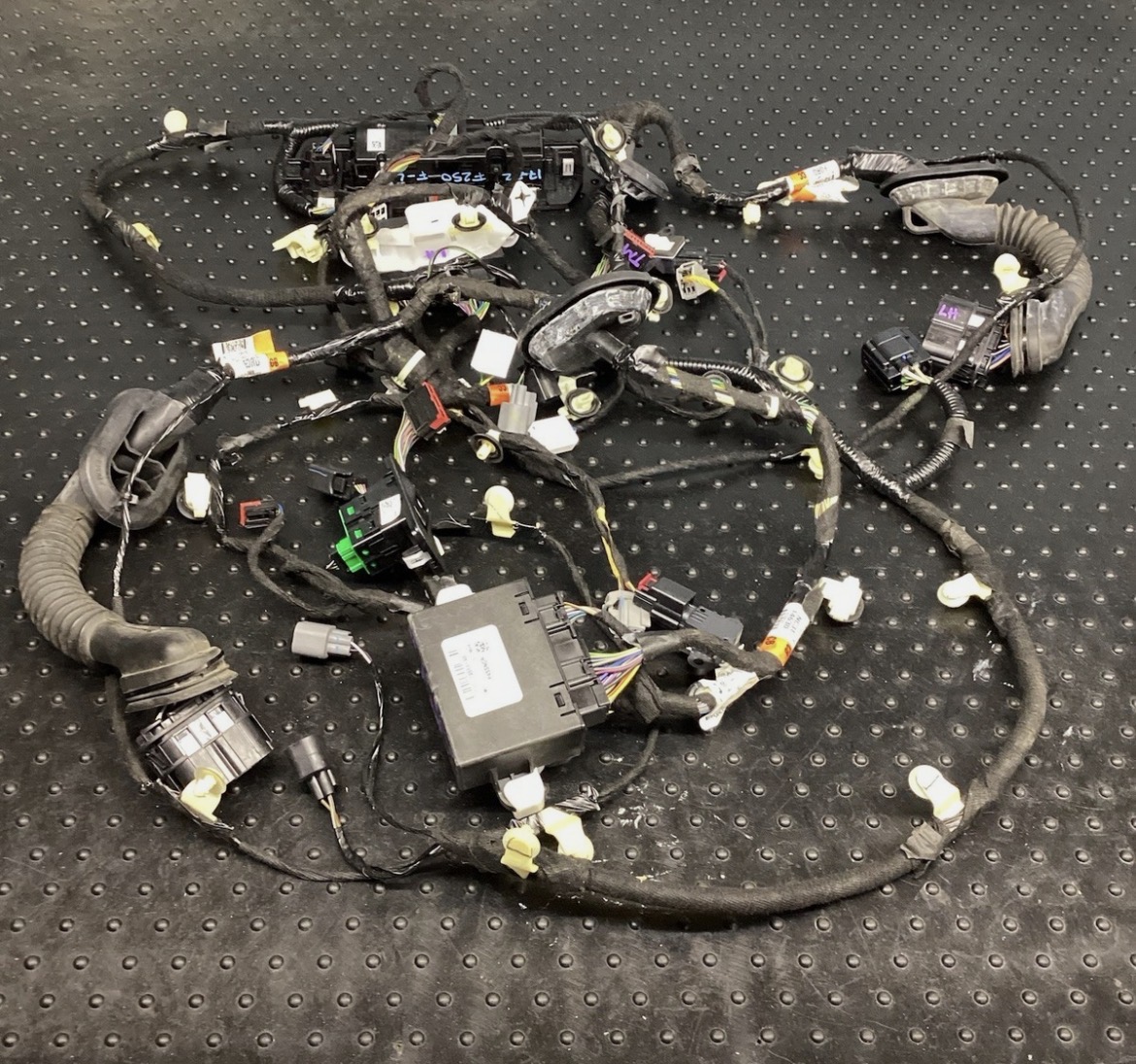

What is a Front Door Wiring Harness?

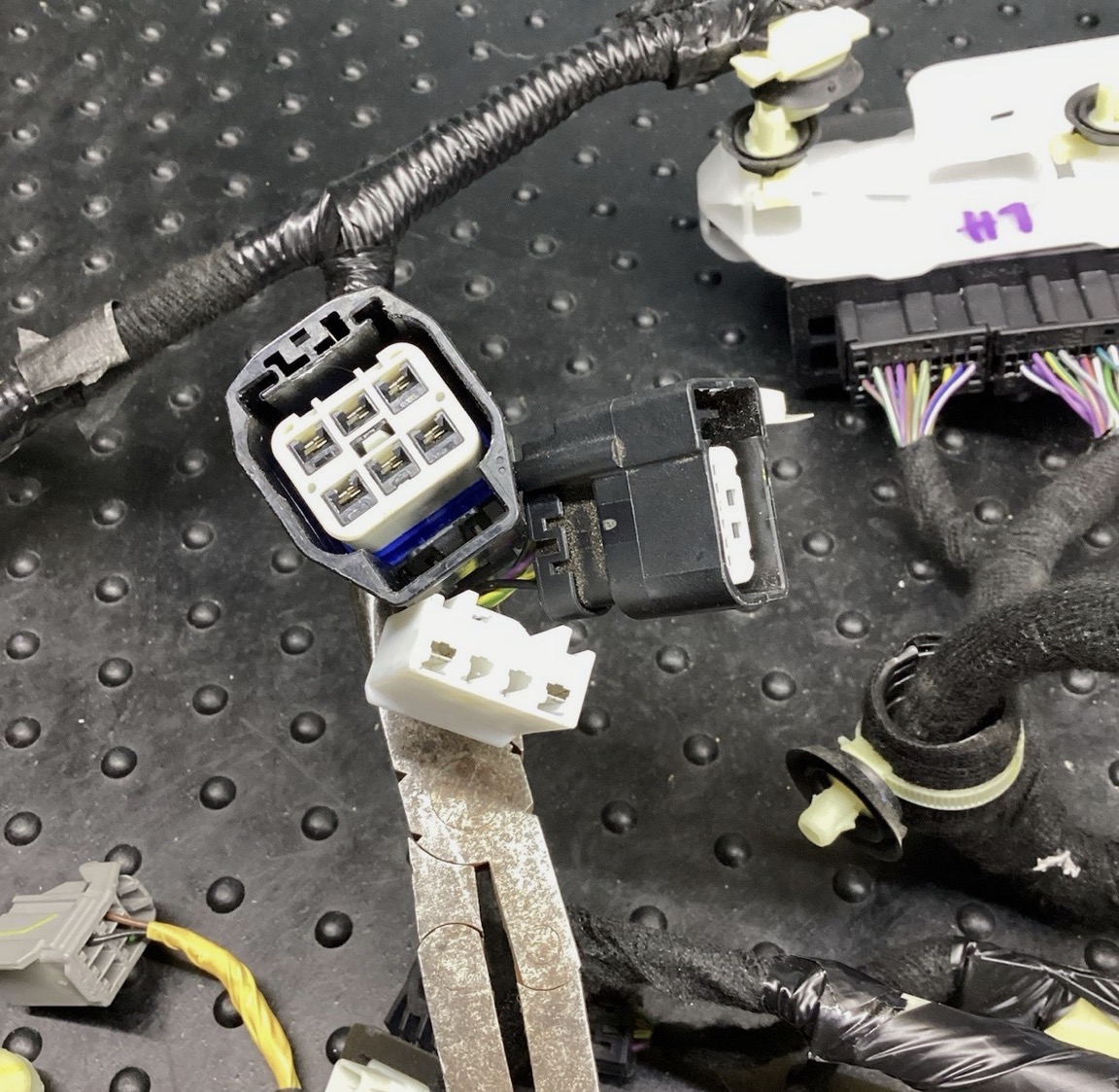

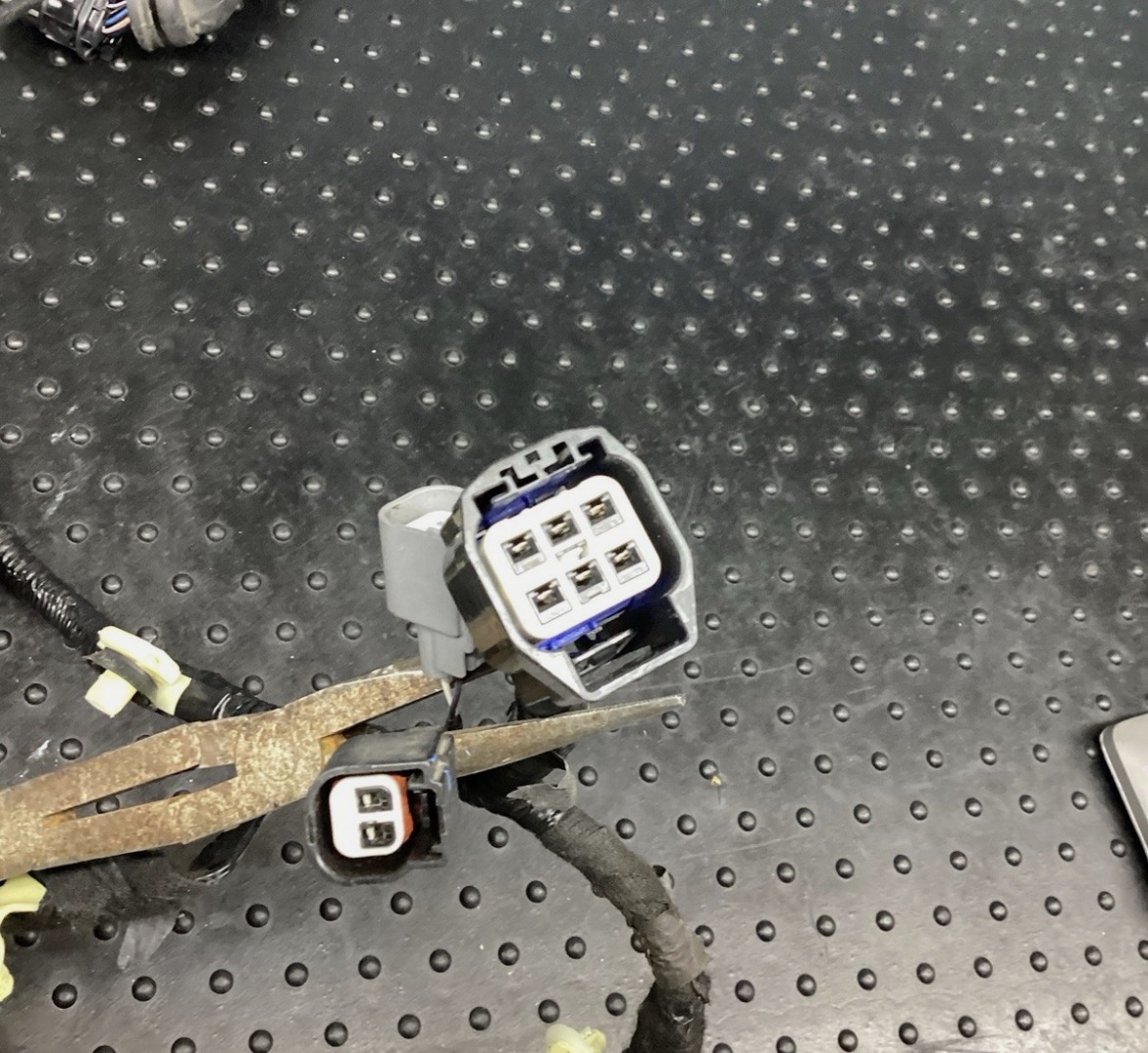

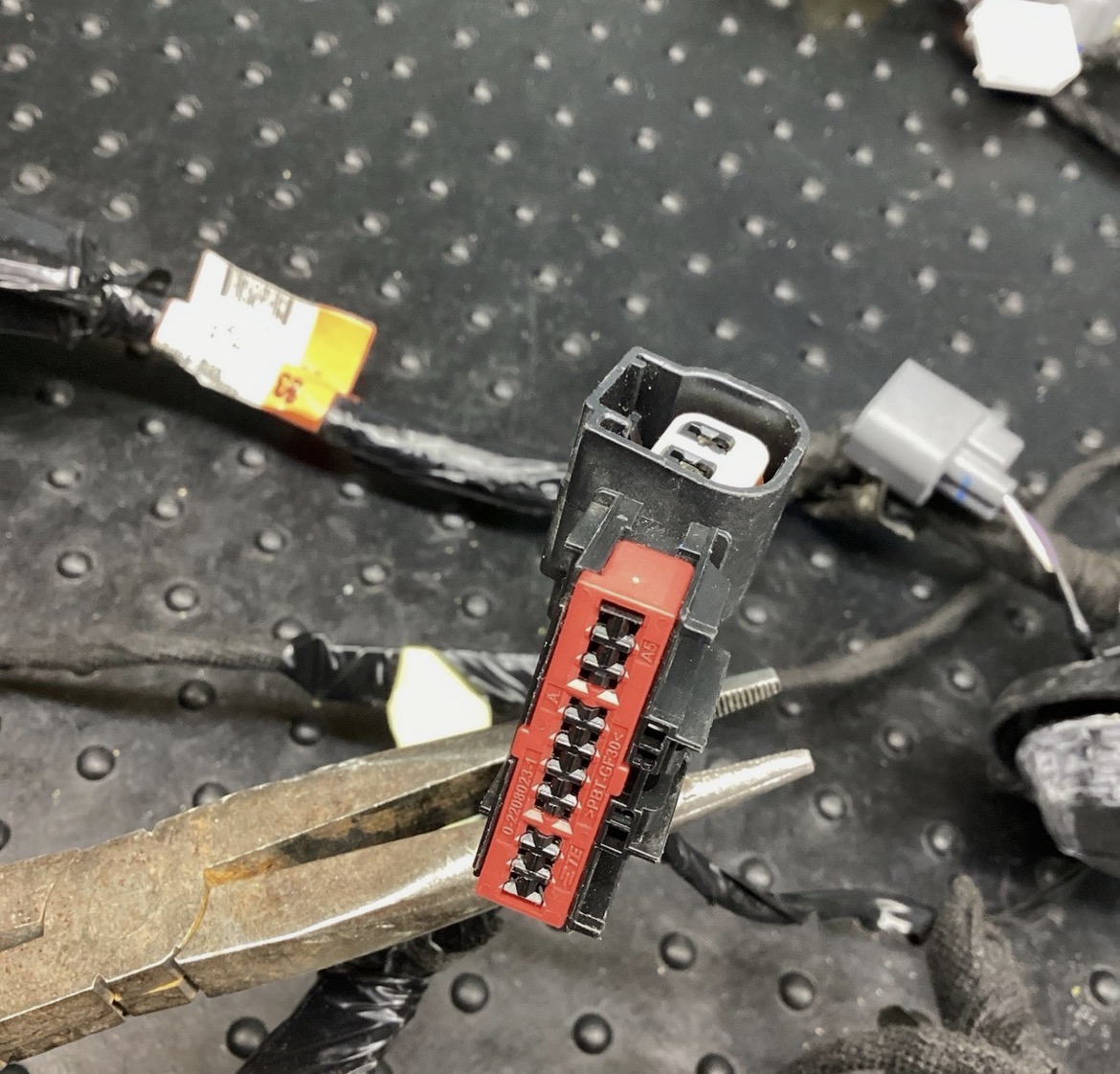

The front door wiring harness is an assembly of color-coded wires, wrapped in protective loom (usually tape or corrugated tubing), that terminates in specific connectors for every electronic component in the door. On the 2020–2022 Super Duty, this typically includes:

· Power window motors
· Power door lock actuators
· Power mirror controls (including heat, turn signal, and telescoping functions on higher trims)
· Speaker wires (for the door speaker)
· Interior lighting (puddle lamps)
· Keyless entry pads (mounted on the door frame)

These harnesses are specifically designed for the Driver Side (LH) and Passenger Side (RH) separately, as the length, connector placement, and electronic functions differ between the two sides .

Common Symptoms of a Faulty Door Harness

Before purchasing a replacement, it is crucial to confirm that the harness itself is the issue rather than a fuse or a module. Look for these tell-tale signs specific to the 2020-2022 generation:

1. Intermittent Operation: Your window works sometimes but stops if you hit a bump, or the speaker cuts out when the door is opened or closed.
2. Complete Component Failure: The power mirror adjusts in every direction except one (e.g., the glass moves left/right but not up/down), indicating a broken wire specific to that motor circuit.
3. Broken Wires in the Boot: Physically inspect the rubber boot between the door and the body. Open the door and peel back the boot. If you see visible breaks, kinks, or corrosion in the wires, the harness needs replacement.
4. Door Lock Actuator Failure: If the door lock actuator has been tested and is functional but the door still won’t lock/unlock with the switch, the wiring supplying power to the actuator is likely compromised.

OEM vs. Aftermarket Replacement Harnesses

When searching for a replacement, you generally have two routes:

Genuine Ford (OEM) Harnesses

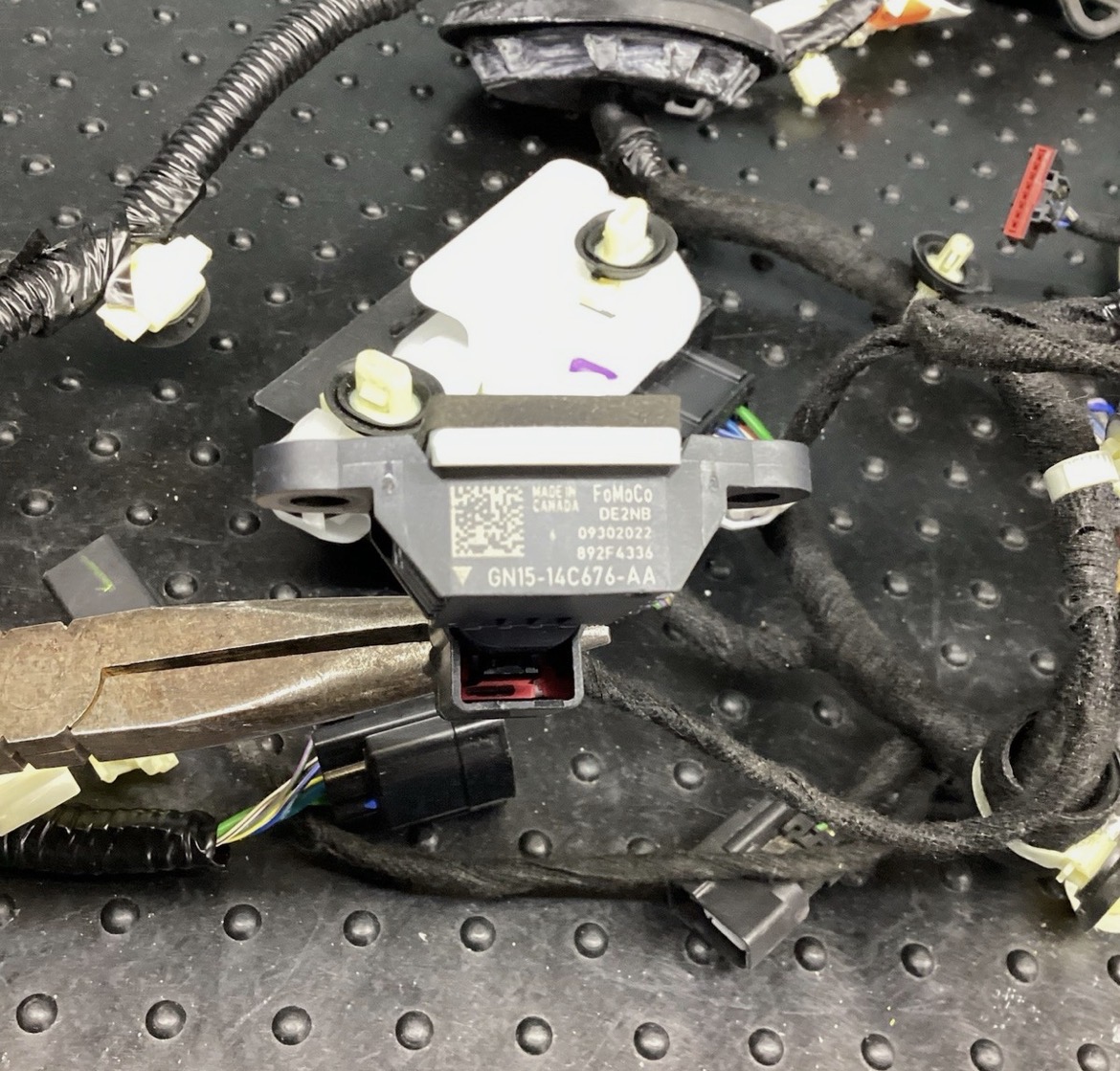

Genuine Ford harnesses are built to the exact specifications for the 2020-2022 Super Duty. They use the correct gauge wiring, high-temperature insulation, and connectors that fit the specific modules (like the Driver Door Module) found in these trucks. While usually more expensive, OEM guarantees “plug-and-play” functionality with no splicing required .

Aftermarket Replacement Harnesses

Aftermarket options can vary significantly in quality. While some manufacturers meet or exceed OE specifications , others may use thinner wiring or cheaper plastics that can crack in extreme temperatures. For critical safety and convenience features, opting for an Original Equipment or reputable brand is recommended .

Note on Internal vs. External: Be aware that some harnesses sold for the F-Series are “internal” transmission harnesses . Always verify the part description clearly states Front Door or Body to avoid ordering the wrong component.

Vehicle Fitment: Is Your Truck Covered?

The 2020-2022 Ford Super Duty generation shares similar electrical architecture, but there are differences between the F-250 and F-350. Generally, the door harnesses are compatible across both models in these years, provided the cab configuration is the same (Crew Cab vs. Extended Cab). The fitment list typically covers:

· 2011–2022 Ford F-250 Super Duty (RWD/4WD)
· 2011–2022 Ford F-350 Super Duty (RWD/4WD)

Always double-check the specific part number for your vehicle’s build date and trim level (e.g., XL, XLT, Lariat, King Ranch, Platinum) as higher trims have more wires for features like memory seats and auto-dimming mirrors.

Installation Tips for DIYers

Replacing a door harness is a meticulous job, but it is achievable for a competent DIYer with basic hand tools.

1. Disconnect the Battery: The Super Duty retains memory for seats and windows. Disconnecting the negative terminal prevents shorting out the new harness and resets the system for a clean install.
2. Remove the Door Panel: Carefully pry off the trim panel. You will likely need to disconnect the door handle cables and the electrical connectors for the switch bank.
3. Remove the Water Shield: Peel back the plastic vapor barrier carefully. You will need to reseal it later to prevent moisture from entering the door.
4. Unbolt the Components: You may need to temporarily unbolt the window regulator or speaker to route the new harness correctly.
5. The “Fish” Technique: The hardest part is feeding the new harness through the door hinge area and into the cabin. Tape the new harness to the end of the old one before you pull the old one out. Use the old harness to “fish” the new one through the tight grommet.
6. Test Before Reassembly: Before putting the door panel back on, reconnect the battery and test every function—windows, locks, mirrors, speakers, and puddle lamps.

Why Buy the Right Harness?

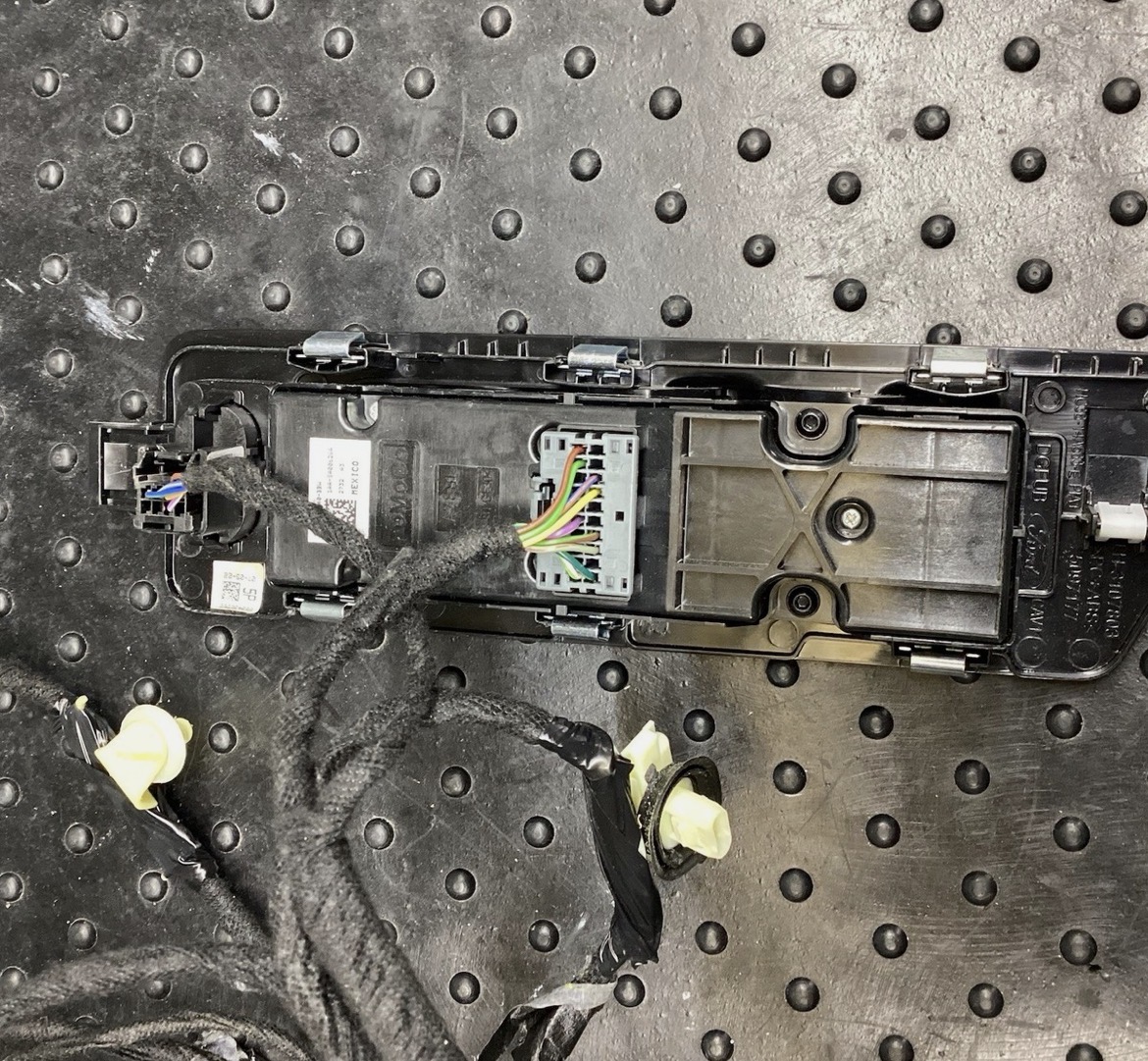

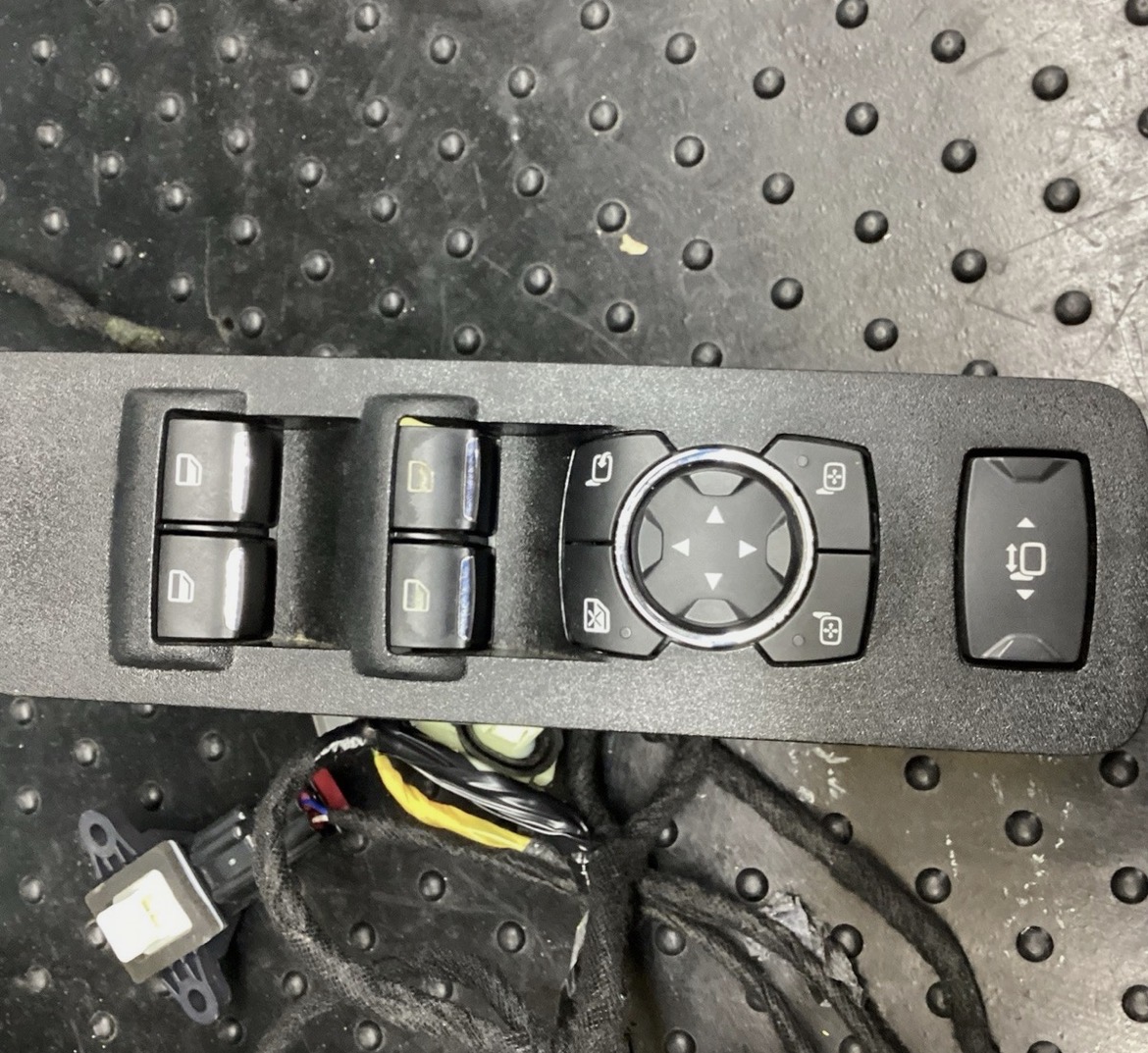

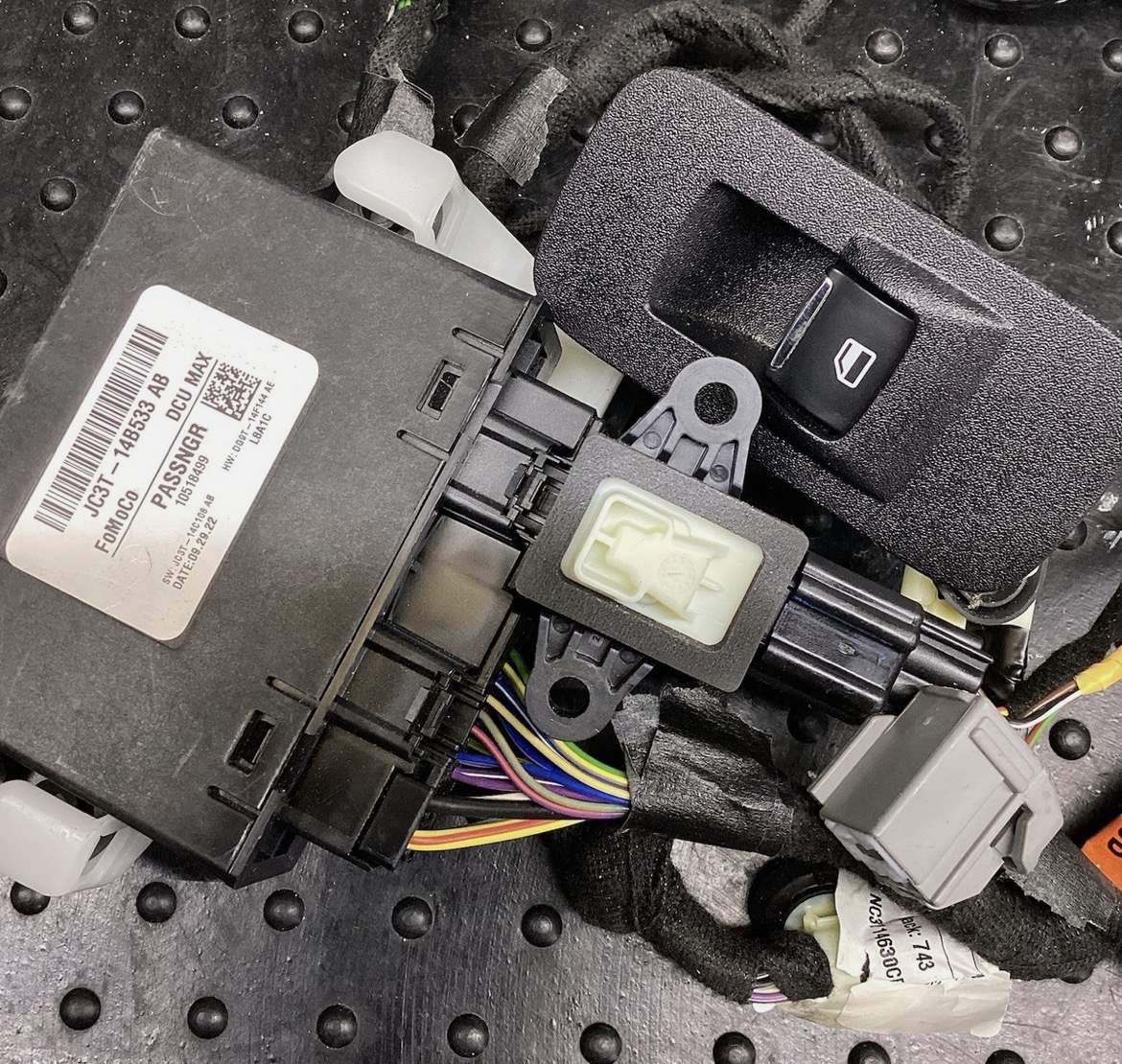

Choosing the correct RH or LH harness is vital. The driver side harness (LH) is longer and contains the master switch controls for all windows and locks. The passenger side (RH) is a “slave” harness, receiving commands from the driver’s side. Installing the wrong side will result in connectors that don’t reach their destinations .

Summary

Don’t let a broken wire ruin the functionality of your Ford Super Duty. Whether you need the Right Hand (RH) or Left Hand (LH) front door wiring harness for your 2020, 2021, or 2022 F-250 or F-350, ensure you purchase a part designed for the high-demand electrical system of this generation truck.

Check your Owner’s Manual for specific fuse locations related to door functions, and always refer to a factory wiring diagram for pin configurations if you are performing a custom repair .
